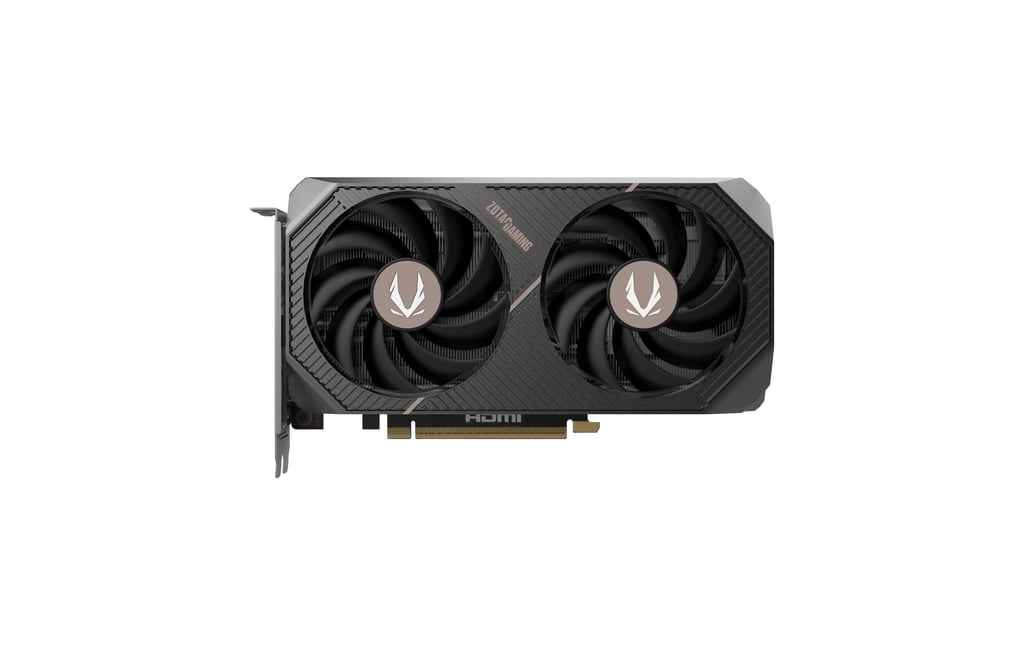

ZOTAC GAMING GeForce RTX 5060 Ti 16GB AMP
ZT-B50620F-10M
The ZOTAC GAMING GeForce RTX 5060 Ti 16GB AMP is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 16GB of GDDR7 memory. With a strong factory OC as well as a solid cooling solution, the AMP is ready to take on the latest title releases with smooth framerates and performance.
Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- White LED lighting
- SFF-Ready Graphics Card
- Compact dual-fan form factor
- IceStorm 2.0 Cooling
- BladeLink Fans
- FREEZE Fan Stop
- Metal Backplate
- All-new FireStorm Utility
| Specification | Details |
|---|---|
| GPU | NVIDIA GeForce RTX 5060 Ti |
| CUDA Cores | 4608 |
| Video Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Engine Clock | 2632 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |

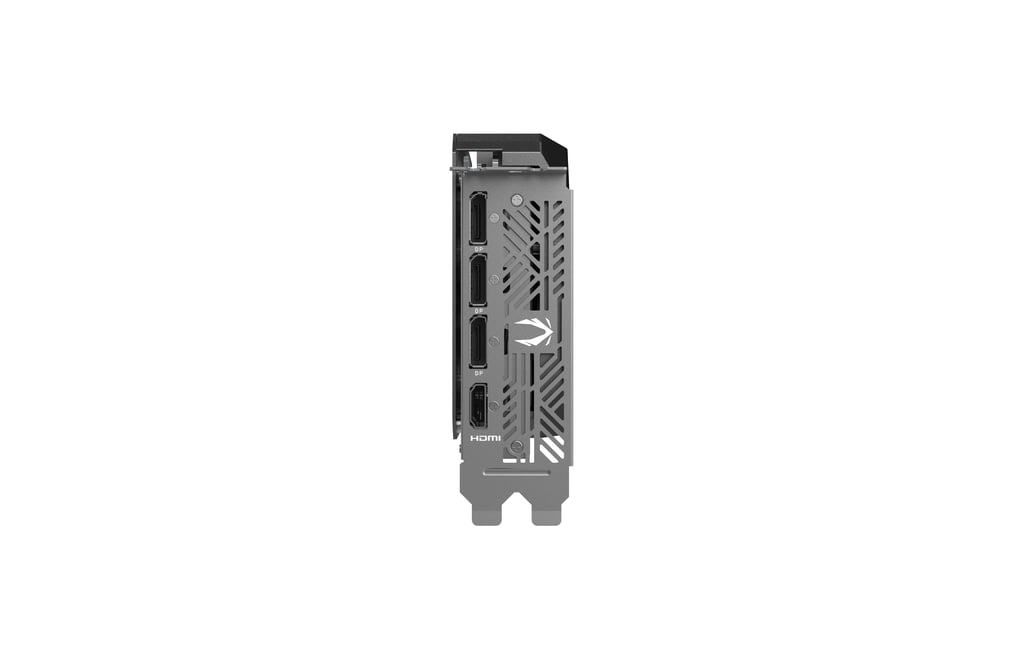

| Display Outputs | 3 x DisplayPort 2.1b (UHBR20) 1 x HDMI 2.1b |
| Display Output Specs | DisplayPort: up to 4K 480Hz or 8K 165Hz with DSC HDMI: 4K 120Hz HDR, 8K 60Hz HDR, VRR |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 650W |
| Power Consumption | 180W |
| Power Input | 1 x 8-pin power input |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | IceStorm 2.0 |
| Slot Size | 2 |
| SLI | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Card Length | 220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6" |
| Accessories | User Manual |
